Features:
1. External air circulation, high thermal efficiency.
2. Bottom heating box.
3. The gusset-type insulation board is easy to clean and easy to install.
4. Suitable for low temperature and long time drying.
Function: remove moisture
Application products: nutritional rice, pellet
Drying time: 50min-120min
Mesh belt width: 1200mm
Material layer thickness: 0.7-1.6cm (calculated according to the bulk density of 700kg/m³)
Working temperature: 60-70℃
Using corn, wheat, oats and other multiple grains as raw materials, it is matured and formed by a high-quality twin-screw extruder. The product is crispy and has high nutritional value, suitable for people of all ages.
Heating Cycle System: The system is mainly composed of two parts: the main fan circulation and the auxiliary fan circulation. Both the main and auxiliary circulation fans use high temperature resistant stainless steel fans.
The detachable dryer door design make it easier to clean every corner inside the dryer. Each door is an insulation board.

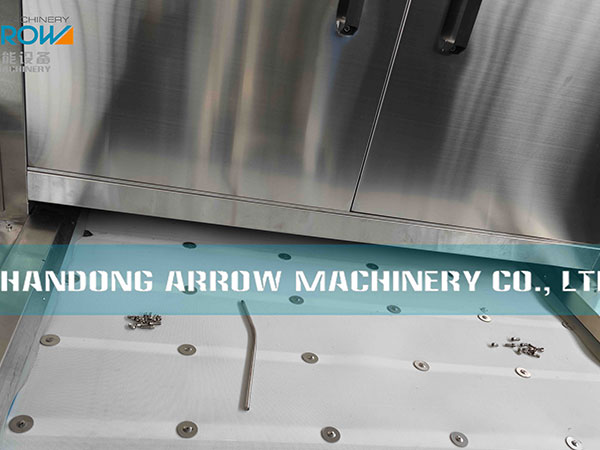

Wear-resistant and high-toughness polyester belt 2100mm width of dryer, 1200mm width of belt Larger area of drying rice, larger output of dryer
Moisture removing system: a big pipe and induced draft fan on the top of dryer, Automatic start and stop the moisture removing time by the control cabinet. It is very important for the big FRK line.
Corn flakes, rice flakes, whole wheat flakes, breakfast cereals, gluten, instant cereals, crispy cereals, fruit cereals, custard stars, honey rings, high fiber whole wheat fiber, whole grains dietary fiber cereals
